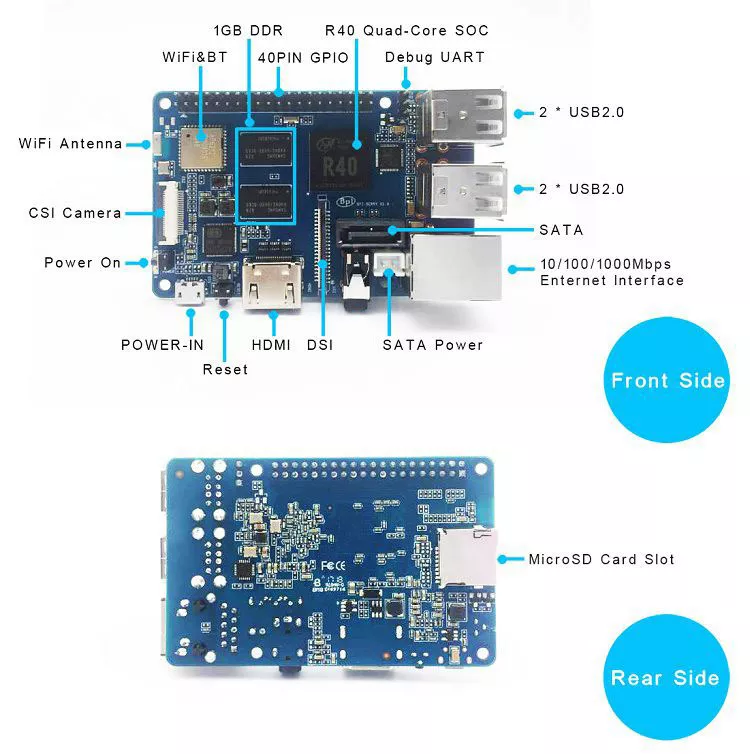

| HardWare Specification of Banana pi BPI-M2 Berry |
| Soc |
Allwinner A40i/R40/V40 |
| CPU |
quad-core cortex -A7,the most power efficient CPU core ARM's ever development |
| GPU |
dual-core MALI-400 MP2 and runs at 500MHz, capable of 1.1 Gpixel/s throughput. Graphics capabilities are slightly higher than the original Xbox’s level of performance. The GPU provides OpenGL ES 2.0, hardware-accelerated OpenVG, 1080p45 H.264 high-profile encode and decode. |
| SDRAM |
1GB DDR3 with 733MHz\(shared with GPU\) |
| SATA |
suppoort SATA interface |
| GPIO |
40 Pins Header, 28×GPIO, some of which can be used for specific functions including UART, I2C, SPI, PWM, I2S. |
| On board Network |
10/100/1000Mbps Ethernet \(Realtek RTL8211E/D\) |
| Wifi Module |
WiFi 802.11 b/g/n \(AP 6212 module on board\) |
| Bluetooth |
BT4.0 |
| On board Storage |
MicroSD \(TF\) card,No eMMC onboard |
| Display |
4-lane MIPI DSI display,or RGB panel or LVDS panel,TV-out on HDMI V1.4 |
| Video |
Multi-format FHD video decoding, including Mpeg1/2, Mpeg4, H.263, H.264, etc H.264 decode up to 1080P60,support video encodeing:High-deinition\(HD\)H.264 video encoder is up to 1080P@45fps |
| Audio outputs |
HDMI, analog audio \(via 3.5 mm TRRS jack\), I2S audio \(also potentially for audio input\) |
| Camera |
A CSI input connector Camera:Supports 8-bit YUV422 CMOS sensor interface,Supports CCIR656 protocol for NTSC and PAL,Supports 5M pixel camera sensor ,Supports video capture solution up to 1080p@30fps |
| USB |
4 USB 2.0 host, 1 USB 2.0 OTG |
| Buttons |
Reset button, Power button, U-boot button |
| Leds |
Power status Led and RJ45 Led |
| IR |
No onboard IR receiver |
| DC Power |
5V/2A with micro USB port |
| battery |
No 3.7V lithium battery power support |
| Sizes |
85mmX56mm,same size as raspberry pi 3 |
| Weight |
40g |
